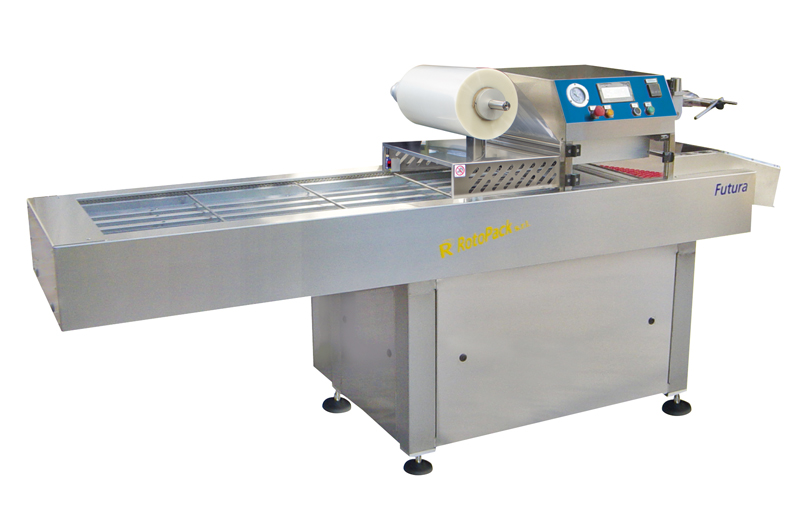

Type: Automatic Tray Sealer with vacuum and gas

  • Automatic vacuum/MAP sealing machine for performed trays in PP, PE, PS, PET, AL etc.
    Teflon coated sealing plate;
  • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening;

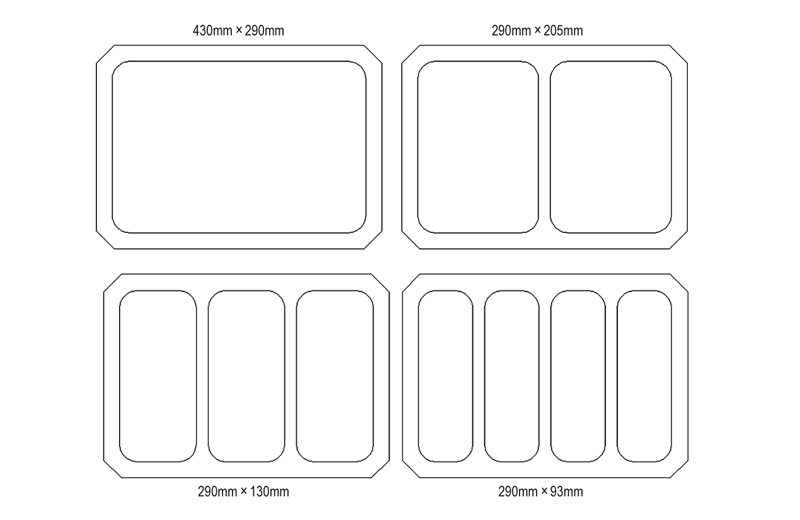

  • Moduls made on tray samples for any shape;
  • Touch screen with 10 storable programs;
  • Digital temperature controller with PT 100 probe;
  • Extra vacuum and extra gas functions;
  • Fast tool change;
  • Pressure sensor for vacuum and gas;


  • Version “only sealing”;
  • Special vacuum pump for gas mixtures with high oxygen%;
  • Photocell for printed film;
  • Tray denester;
  • Filling systems

Made in Italy

Power 400 V. – 50/60 HZ 3P+N+PE
Power Consumption 4,5 KW
Air Supply 20 NL/ciclo
Weight 500 Kg.
Max. Container Dimension 430 x 290 mm. x 100 h.

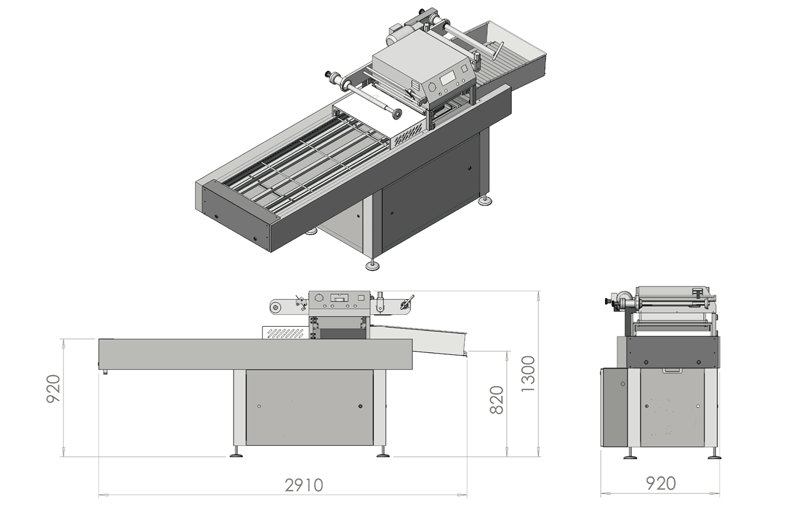

Machine dimensions 2750 x 920mm. x 1300 h.
Vacuum pump 105 m3
Max. Film width 500 mm.
Productivity vac-gas/only sealing 5/12 cicli/min
