EASY

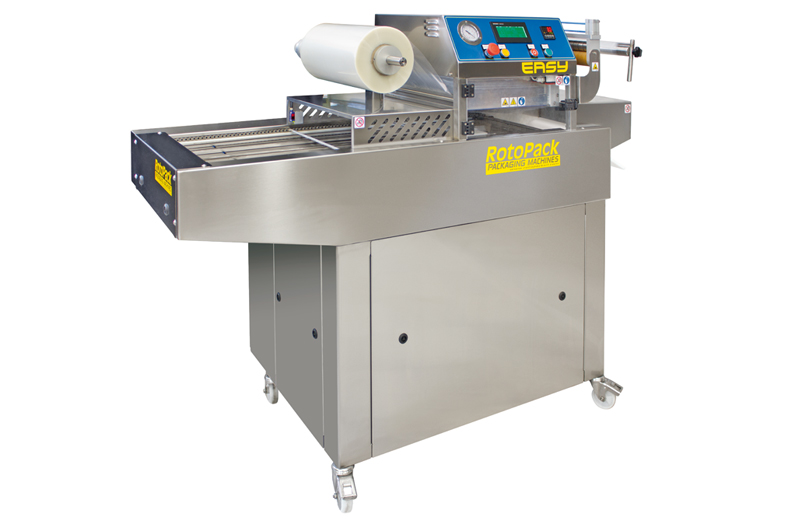

Type: Automatic Tray Sealer with vacuum and gas

  • Automatic vacuum /MAP sealing machine for preformed trays in PP, PE, PS, PET, AL etc. ;
  • Tools easy to change and interchangeable with mod. SVR, SVR TURN and RAPIDA +;
  • Compact size;
  • Teflon coated sealing plate;
  • Digital temperature controller with PT 100 probe;
  • Pressure sensor for vacuum and gas;
  • Moduls made on tray samples for any shape
  • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening
  • Extra vacuum and extra gas functions
  • Touch screen with 10 storable programs;
  • Structure in stainless steel and aluminium;

Optional:

  • Version “only sealing”;
  • Special vacuum pump for gas mixtures with high oxygen%;
  • Photocell for printed film

Made in Italy

Power 400 V – 50/60 HZ 3P+N+PE
Power Consumption 3,5 KW
Air Supply 20 NI/ciclo – 6 bar
Weight 300 Kg.

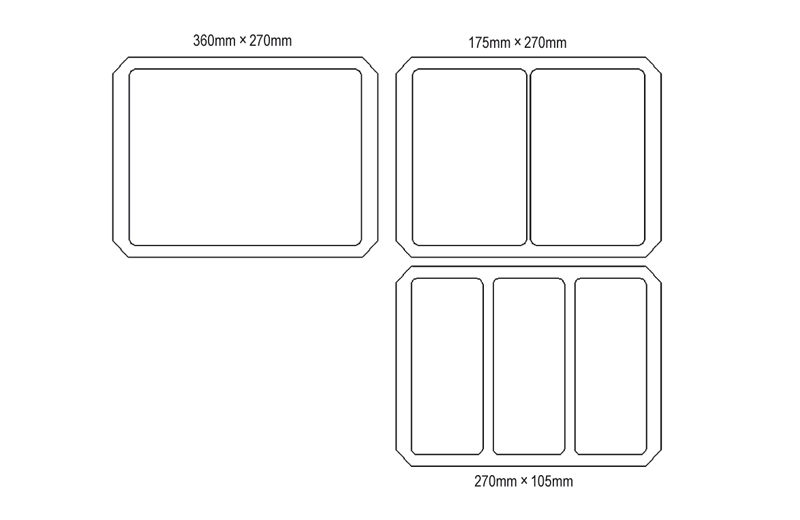

Max. Container Dimension 360 x 270 x h.100 mm

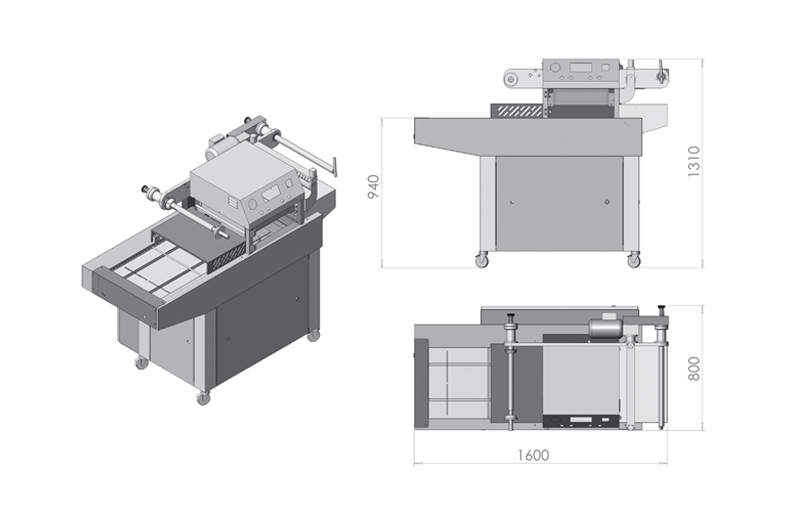

Machine dimensions 160 x 080 Cm. x h.131
Vacuum pump 60 M3
Max. Film width 430 mm.
Productivity vac-gas/only sealing 5 / 12 cicli/min
