SVR

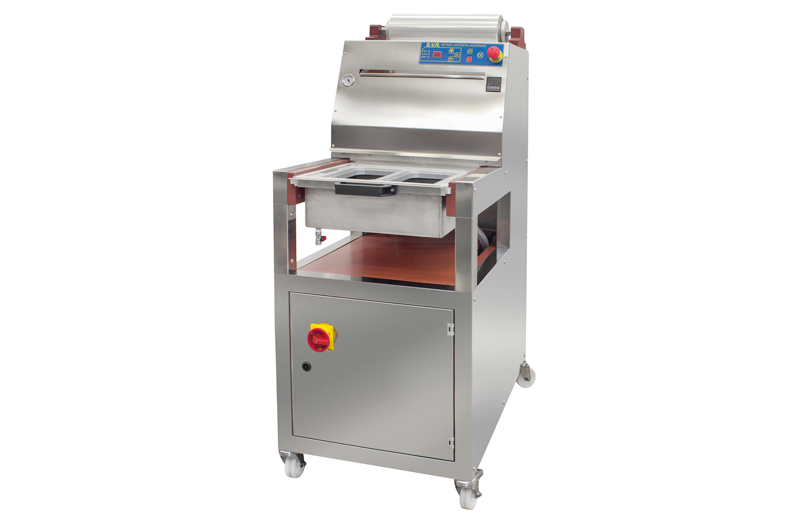

Type: Semi-automatic Tray Sealer with vacuum and gas

  • Semi automatic vacuum/MAP sealing machine for performed trays in PP, PE, PS, PET, AL etc.
  • Teflon coated sealing plate;
  • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening;
  • Digital temperature controller with PT 100 probe;
  • 10 storable programs (possibility to set time for sealing, vacuum, gas and pause);
  • Extra vacuum and extra gas functions;
  • Pressure sensor for vacuum and gas;
  • Structure in stainless steel, aluminium and polythene;

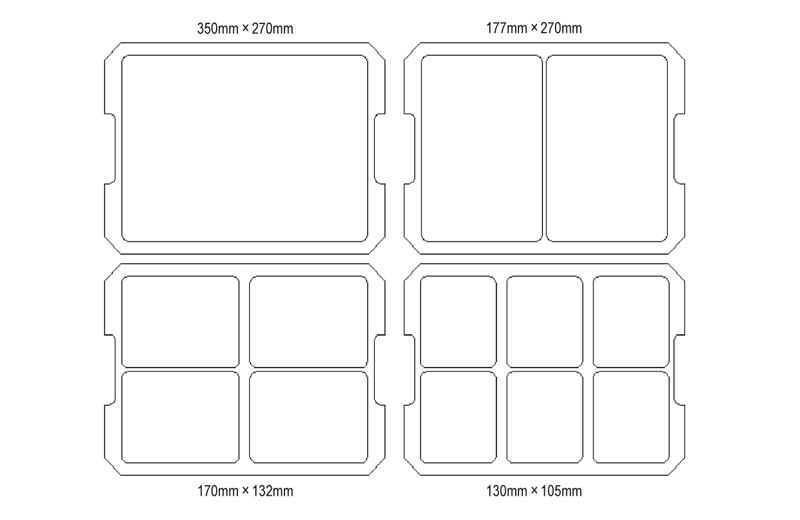

  • Moulds made on tray samples for any shape ;
  • Tools easy to change and interchangeable with mod. SVR TURN, RAPIDA + and EASY;

Optional:

  • Version “only sealing” (mod. SPR);
  • Larger version to seal trays up to 410 x 340 X 120 mm.;
  • Possibility to seal trays up to h 230 mm.;
  • Special vacuum pump for gas mixtures with high % of oxygen;
  • Automatic drawer injection/ejection;
  • Inside compressor;
  • Photocell for printed film;

Made in Italy

Power 230 V. – 50/60 HZ P + N + PE
Power Consumption 2,5 KW.
Air Supply 5 NL/cycle
Weight 150 Kg.
Max. Container Dimension 350 x 270 mm. x 120 h.

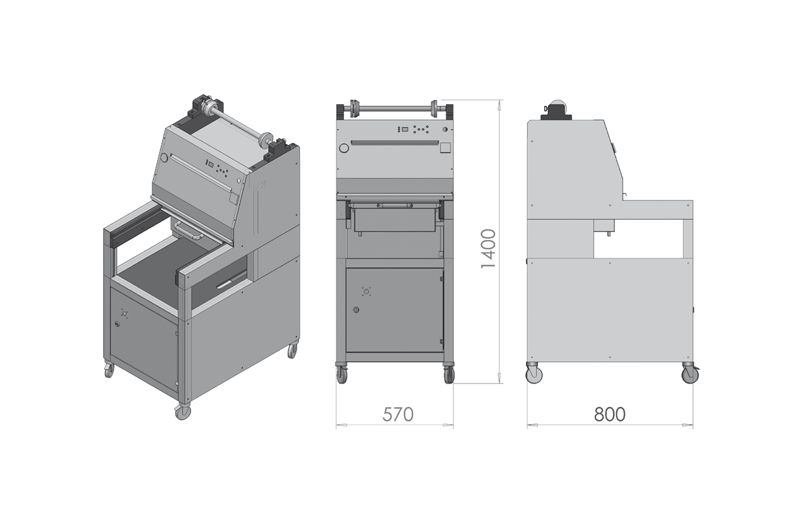

Machine dimensions 570 x 800 mm. x 1400 h.
Vacuum pump 25 m3
Max. Film width 400 mm.
Productivity vac-gas/only sealing 3/5 cicli/min
