SPR

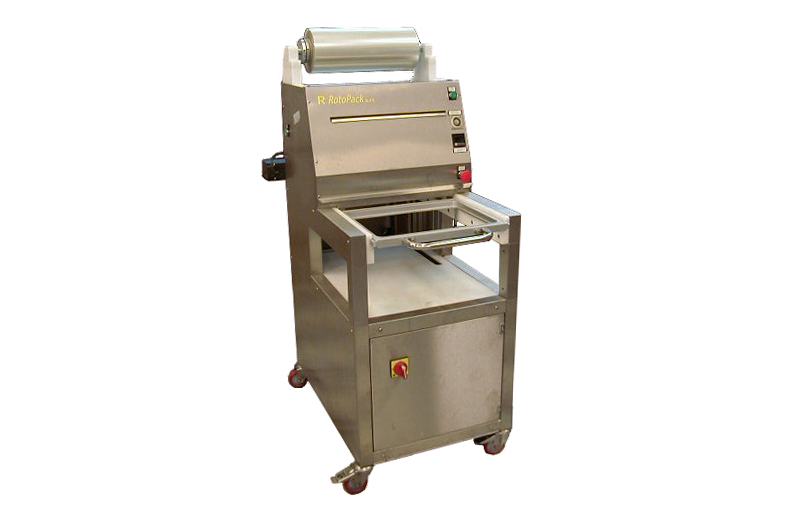

Type: Semi-automatic Tray Sealer

  • Semi automatic sealing machine for preformed trays in PP, PE, PS, PET, AL etc.;
  • Teflon coated sealing plate;
  • Profile cutting to the tray size;
  • Digital temperature controller with PT 100 probe;
  • Structure in stainless steel, aluminium and polythene
  • Moulds made on tray samples for any shape
  • Fast tool change



optional:

  • Larger version to seal trays up to mm. 410 x 340 x h. 120
  • Automatic drawer injection/ejection
  • Vacuum sensor
  • Inside compressor
  • Photocell for printed film

Made in Italy

Power 230 V. – 50/60 Hz P+N+PE
Power Consumption 2 KW
Air Supply 3,5 NL/ciclo
Weight 100 Kg.
Max. Container Dimension 350 x 270 x 240 mm.
Machine dimensions 570 x 800 x 1400 mm.
Max. Film width 400 mm.
Productivity vac-gas/only sealing 5 cycles/min
