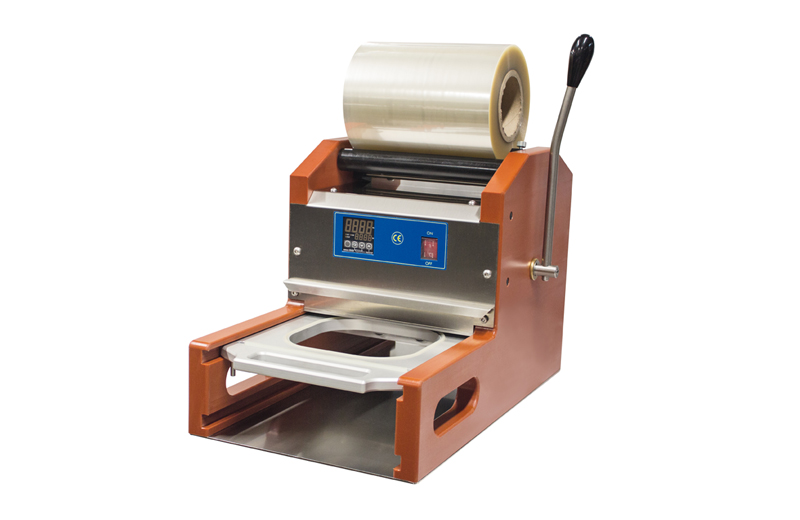

SR 230

Type: Manual Tray Sealer

  • Manual sealing machine for preformed trays in PP, PE, PS, PET, AL etc. ;
  • Teflon coated sealing plate;
  • Digital temperature controller with PT 100 probe;
  • Structure in stainless steel, aluminium and polythene;
  • Moulds made on tray samples for any shape;


  • Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening
  • Possibility to seal trays up to h 185 mm.
  • Special moulds to seal pre-cut lids

Made in Italy

Power 230 V. – 50/60 Hz P+N+PE
Power Consumption 1000 W
Weight 25 kg.
Max. Container Dimension 190 x 200 mm. 95 h.
Machine dimensions 320 x 500 x 460 mm.
Max. Film width 200 mm.
