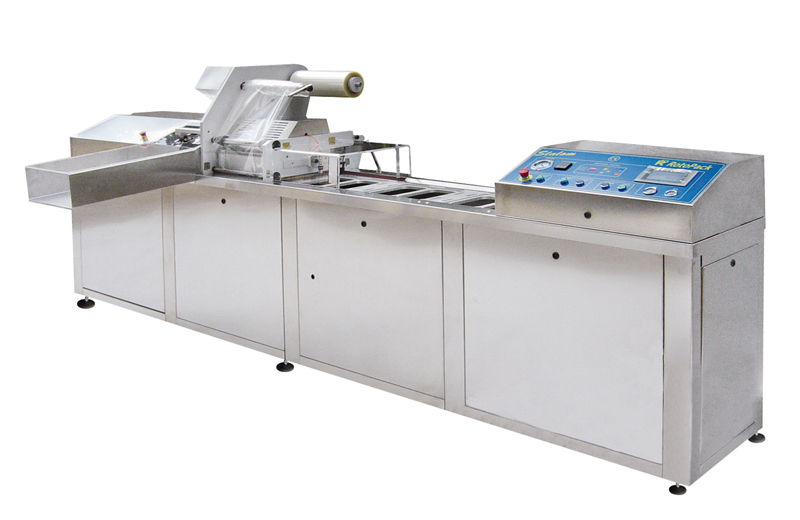

Automatic vacuum/MAP sealing machine for performed trays in PP, PE, PS, PET, AL etc.
Automatic indexing through plateaux to seal standard or irregular formed trays;
Easy inspectable and customizable structure made in aluminium sections, polythene and stainless steel panels
Teflon coated sealing plate;
Profile cutting to the tray size with possibility to create an easy peel angle to facilitate the tray opening
Moduls made on tray samples for any shape
Extra vacuum and extra gas functions
10 storable programs (possibility to set time for sealing, vacuum, gas and pause);
Digital temperature controller with PT 100 probe;
Pressure sensor for vacuum and gas;
Fast tool change;
Version “only sealing”;
Special vacuum pump for gas mixtures with high oxygen%;
Photocell for printed film;
Made in Italy
400 V. – 50/60 HZ 3P+N+PE
3 KW + 2,2 KW
Max. Container Dimension
350 x 270 mm. x 120 h.

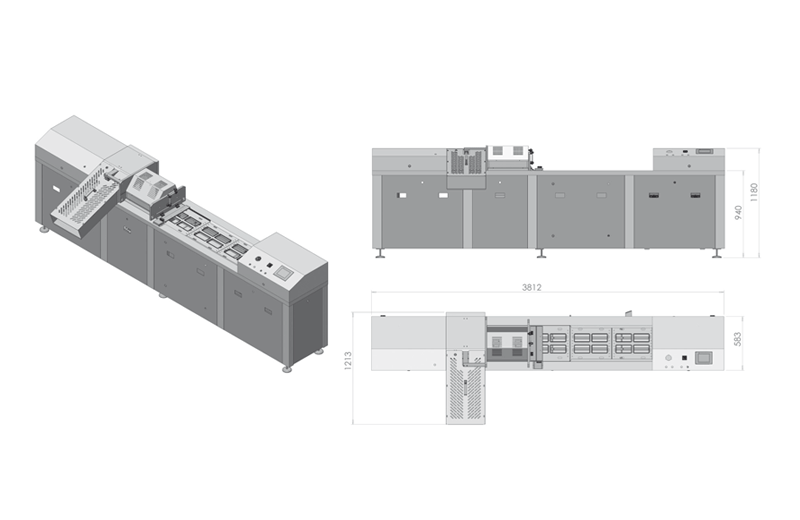

3820 x 1380 mm. x 1500 h.
Max. Film width
Productivity vac-gas/only sealing
Modified Atmosphere Packing
In order to prevent the loss of natural freshness and quality, an effective and intelligent food preservation concept called Modified Atmosphere Packaging (MAP) has been developed. The use of natural gases and proper packaging materials and machines help to maintain the quality of the foodstuffs and prolong their shelf life. The MAP gas mixtures usually consist of the gases already present in the air that we breathe: carbon dioxide (CO2), nitrogen (N2) and oxygen (O2). The gases are added before the trays are sealed, making them ready for transport. Tray sealing machines with MAP are available from semi-automatic to fully-automatic in-line tray sealers.
